PTJ124 economical high-temperature melt pressure sensor, pressure sensor for injection molding machines, pressure sensor for extrusion machinery

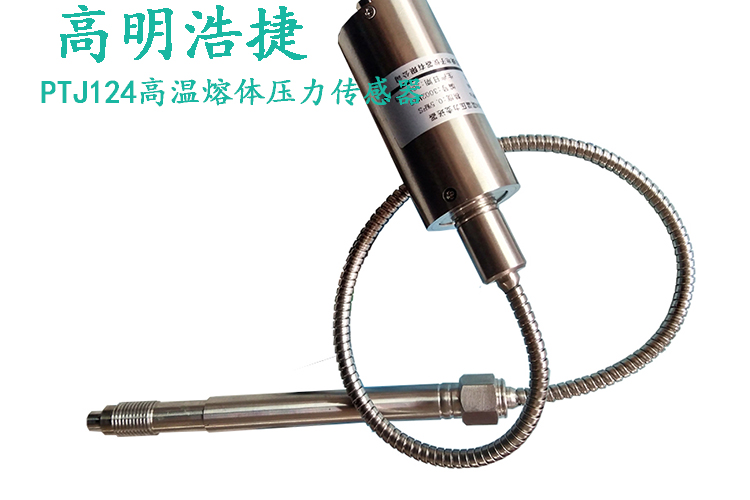

PTJ124 economical high-temperature melt pressure sensor .

Characteristics of Haojie Electronic High Temperature Melt Pressure Sensor/Transmitter:

1: The rigid rod makes the Haojie Electronic high-temperature melt pressure sensor sturdy and durable

2: Imported heat pipes and diaphragm isolation structure enable Haojie Electronics' high-temperature melt pressure sensor to perform high-precision pressure measurement at 450 degrees Celsius

3: A highly stable temperature compensation circuit with a medium temperature below 450 ℃, exhibiting good stability and accuracy;

Pressure measurement and control of high-temperature fluid/gas media applied to mechanical equipment such as rubber, plastic, synthetic polyester nylon, polyester, steam, etc

Also known as: boiler pressure sensor, steam pressure sensor, melt pressure sensor/transmitter, plastic machine pressure sensor, plastic machine pressure measurement and control sensor, plastic machine pressure control instrument, economical high-temperature melt pressure sensor, economical high-temperature melt pressure sensor, Guangdong Foshan economical high-temperature melt pressure sensor

Main technical parameters:

Range: 0-300MPa

Comprehensive accuracy: 0.25% FS; 0.5% FS

Output: 2.0mV/V; 4～20mA;0～5V; 1～5V;0～10V

Calibration signal: 80% FS calibration; Zero point and full-scale adjustment

Working temperature: -10~450 ℃;

Supply voltage: Sensor: 10VDC (6-12VDC) Transmitter: 24VDC (9-36V)

Long term stability: 0.1% FS/year

Insulation resistance: greater than 2000M Ω 100VDC

Vibration impact: For mechanical vibrations ranging from 20HZ to 1KHZ, the output variation is less than 0.1% FS

Sealing grade: IP65

Signal output: 5pin five core connector

Threaded connection: M14X1.5 (universal type);  M16X1.5;  M18X1.5;  M20X1.5; M22X1.5 (universal type); Other threads can be designed according to user requirements
