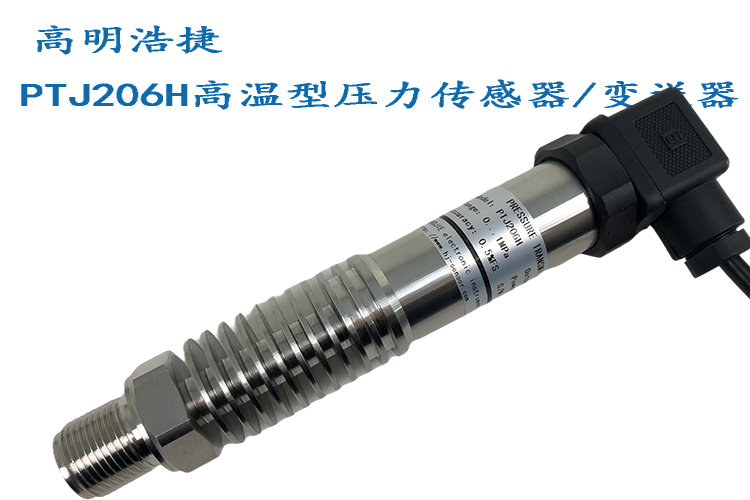

PTJ206H high temperature pressure sensor/transmitter, high temperature display pressure gauge, high temperature pressure adjustable controller

characteristic:

1: Adopting a fully stainless steel sealing and welding structure, it has good moisture resistance and excellent medium compatibility.

2: Adopting independently developed amplification circuits greatly improves the stability of sensor signal output

3: The use of a reaction rate of 40000 times per second enables the sensor to reflect changes in hydraulic pressure at any time, resulting in more accurate and error free measurement results

4: 206H adopts a high-temperature resistant core and operates in a high-temperature medium state to provide high-temperature output compensation circuit for the circuit Make the accuracy of the sensor output equally accurate when measuring high-temperature media

Application: Widely used for pressure measurement and control in industrial equipment, water conservancy, chemical, medical, power, pipeline water pressure, water supply systems, oil supply systems, air conditioning, diamond presses, metallurgy, vehicle braking, building water supply, constant pressure water supply, etc.

Range: 0-0.6-150 (MPa)

Comprehensive accuracy: 0.2% FS, 0.5% FS, 1.0% FS

Output signal: 4-20mA (two-wire system), 0-5V, 1-5V, 0-10V (three wire system)

Supply voltage: 24DCV (9-36DCV)

Medium temperature: -20~85 ℃/Note: PTJ206H: -20~200 ℃

Environmental temperature: normal temperature (-20~85 ℃)

Load resistance: current output type: maximum 800 Ω; Voltage output type: greater than 50K Ω

Insulation resistance: greater than 2000M Ω (100VDC)

Sealing grade: IP65

Long term stability performance: 0.1% FS/year

Vibration impact: Within the mechanical vibration frequency range of 20Hz to 1000Hz, the output variation is less than 0.1% FS

Electrical interface (signal interface): Hesman connector anti-interference connector

Mechanical connection (threaded interface): 1/2-20NEF, M14 × 1.5, M20 × 1.5, M22 × 1.5, etc. Other threads can be designed according to customer requirements
