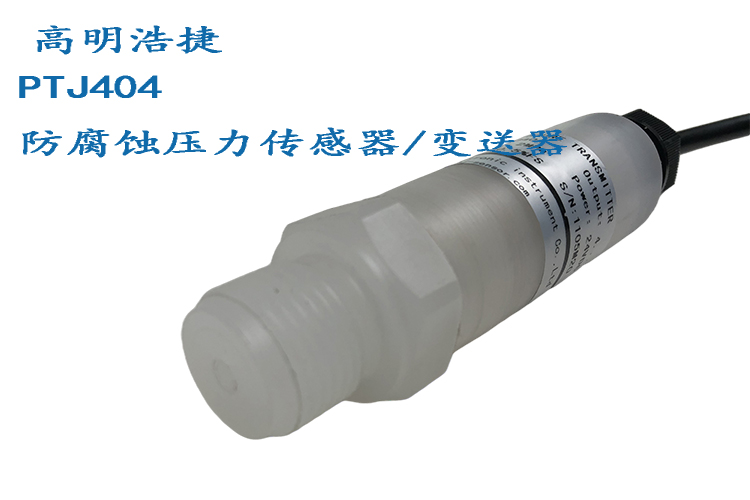

PTJ404 anti-corrosion pressure sensor/transmitter (high corrosiveness, strong acidic medium pressure measurement and control instrument)

Haojie Electronics anti-corrosion pressure sensors/transmitters have the following characteristics:

1: Adopting ceramic piezoresistive chips/corrosion-resistant cores

2: The shell is made of polyethylene terephthalate

3: Adopting independently developed interference circuits

4: High polymer high-density material with anti-corrosion cable

The anti-corrosion cable is made of ceramic piezoresistive chips and high-density polymer materials that are resistant to strong acids and alkalis. After soaking in 37% HCl hydrochloric acid for two years, there were no abnormal phenomena. It is mainly used for pressure measurement and control in industries with strong corrosiveness such as chlorine gas for water disinfection, chemical industry, battery equipment, as well as food hygiene, medical and other industries.

Range: 0~5~10 (MPa)

Comprehensive accuracy: 0.2% FS, 0.5% FS, 1.0% FS

Output signal: 4-20mA (two-wire system), 0-5V, 1-5V, 0-10V (three wire system)

Supply voltage: 24DCV (9-36DCV)

Medium temperature: -20~85 ℃

Environmental temperature: normal temperature (-20~85 ℃)

Load resistance: current output type: maximum 800 Ω; Voltage output type: greater than 50K Ω

Insulation resistance: greater than 2000M Ω (100VDC)

Sealing grade: IP65

Long term stability performance: 0.1% FS/year

Vibration impact: Within the mechanical vibration frequency range of 20Hz to 1000Hz, the output variation is less than 0.1% FS

Electrical interface (signal interface): Tightening nut

Mechanical connection (threaded interface): M16 × 1.5, M20 × 1.5, M22 × 1.5, etc. Other threads can be designed according to customer requirements
