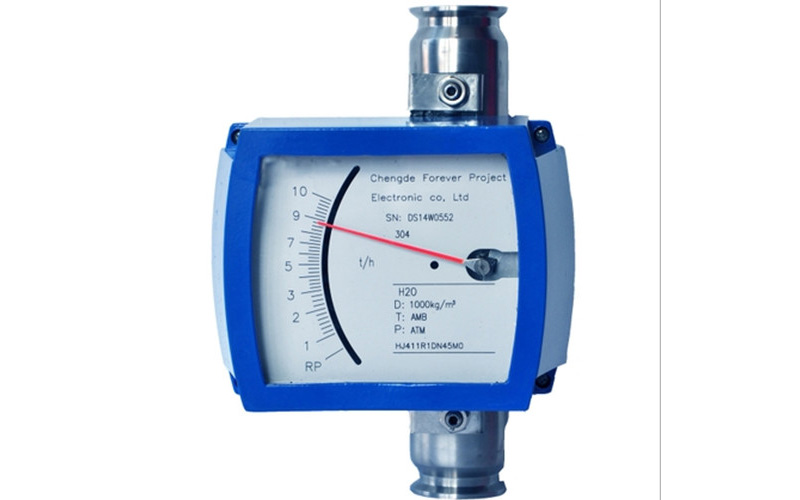

TRH-L-F1 floating ball flow sensor, economical flow calculation instrument

The typical structure of a metal tube float flowmeter with a right angle installation method is usually suitable for instruments with a diameter of 15-40mm or more. Cone tube 5 and float 4 form a flow detection element. There is an extension of the guide rod 3 inside the casing (not shown in Figure 3), which transmits the displacement of the float to the conversion part outside the casing through magnetic coupling and other methods. The conversion part has two types: local indication and remote signal output. In addition to the right angle installation method, there is also a straight through structure where the centerline of the inlet and outlet is concentric with the cone tube, which is usually used for instruments with a diameter less than 10-15mm.

Measurement range: Water (20 ℃) 1-200000 l/h

Air (20 ℃, 0.1013MPa) 0.03-4000m3/h

Refer to the flow chart, special flow rates can be customized

Range ratio: Standard 10:1 Special 20:1

Accuracy: Standard Type 1.5 Special Type 1.0

Pressure rating: Standard type: DN15-DN50 4.0MPa DN80-DN200 1.6MPa

Special type: DN15-DN50 25MPa DN80-DN200 16MPa

The pressure rating of the jacket is 1.6MPa

Special types should be negotiated with the factory before selection and ordering

Pressure loss: 7kPa-70kPa

Medium temperature: Standard type: -80 ℃ -+200 ℃: PTFE: 0 ℃ -85 ℃

High temperature type: up to 400 ℃

Medium viscosity: DN15:<5mPa. s (F15.1-F15.3)

<30mPa.s（F15.4-F15.8）

DN25:<250mPFa.s

DN50-DN150:<300mPa.s

Environmental temperature: LCD type -30 ℃ -+85 ℃

Pointer type -40 ℃ -+120 ℃

Connection form: Standard type: DIN2501 standard flange

Special type: Any standard flange or thread specified by the user

Cable interface: M20 * 1.5

Power supply: Standard type: 24VDC two-wire system 4-20mA (10.8VDC-36VDC)

Alarm output: upper or lower limit instantaneous flow alarm, collector open circuit output (maximum) 100mA@30VDC Internal impedance of 100 ohms

Relay output (contact capacity) 1A@30VDC perhaps 0.25A@250VAC perhaps 0.5A@125VAC ）

Pulse output: Accumulated pulse output, minimum interval of 50 milliseconds

LCD display: instantaneous flow display value range: 0-50000

Accumulated traffic display value range: 0-99999999 (with decimal point)

Protection level: IP65

Explosion proof mark: intrinsically safe type ia Ⅱ CT5; Explosion proof type d Ⅱ BT6
