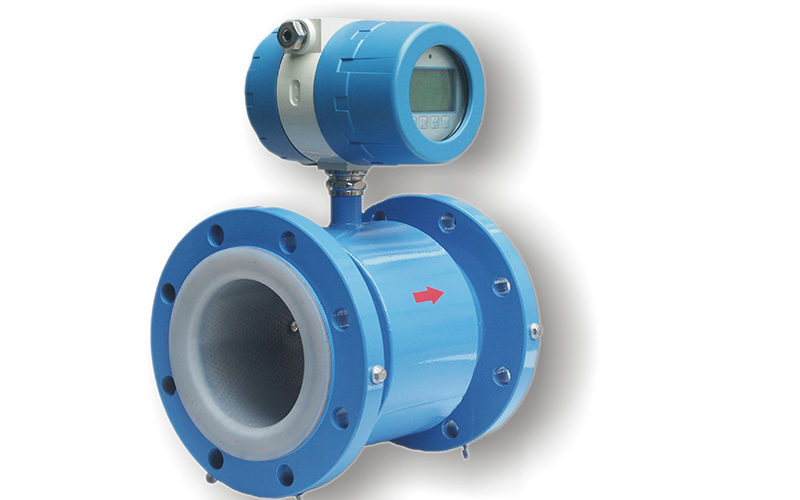

TRH-L-D electromagnetic flowmeter, electromagnetic flow sensor

The electromagnetic flow sensor and electromagnetic flow converter are combined to form a split type electromagnetic flow. Electromagnetic flow sensors can also be paired to form integrated or split type intelligent electromagnetic flow meters, depending on user needs. It can be used to measure corrosive liquids such as acids, alkalis, salts, or two substances mixed with solids in liquids, such as mud, sewage containing a large amount of impurities, and media with high viscosity. Widely used in industries such as chemical engineering, metallurgy, papermaking, pharmaceuticals, textiles, brewing, food, environmental protection, chemical fibers, and water conservancy.

performance index

edit

Caliber: DN10 to DN1600

Electrode materials: 1Cr18Ni9Ti, HB, Hc, Ti, Ta, etc

Lining materials: DN10~DN20 polytetrafluoroethylene, PTFE, polyurethane

DN25-DN200 chloroprene rubber, polytetrafluoroethylene, Teflon, polyurethane

DN200~DN1600 chloroprene rubber, polytetrafluoroethylene, polyurethane

● Electrode form: Standard RE (scraper type) ≥ DN200

Measurement medium: Conductive liquid (including solid-liquid two-phase flow)

Dielectric conductivity: greater than 5 μ S/cm (pure water>20 μ S/cm)

Accuracy level: ± 0.3% to ± 0.5%

Flow velocity range: 0.3m/s to 12m/s

Working temperature: -25 ℃~+180 ℃ (rubber lining ≤ 80 ℃, polyurethane ≤ 65 ℃)

● Working pressure: 0.6MPa~4.0MPa, special order for overpressure

● Protection level: IP65 (standard type) IP67 (immersion type) IP68 (diving type)

Explosion proof grade: Exmd Ⅱ BT4 hybrid explosion-proof type

● Supporting converter: QLZ-3 QLC090-B intelligent type

Application: Acid alkali salt corrosion turbidity, slurry, pulp, water supply and drainage

● Connecting flange: machine standard JB/T81-94, national standard GB9115

Installation form: split type, integrated type
