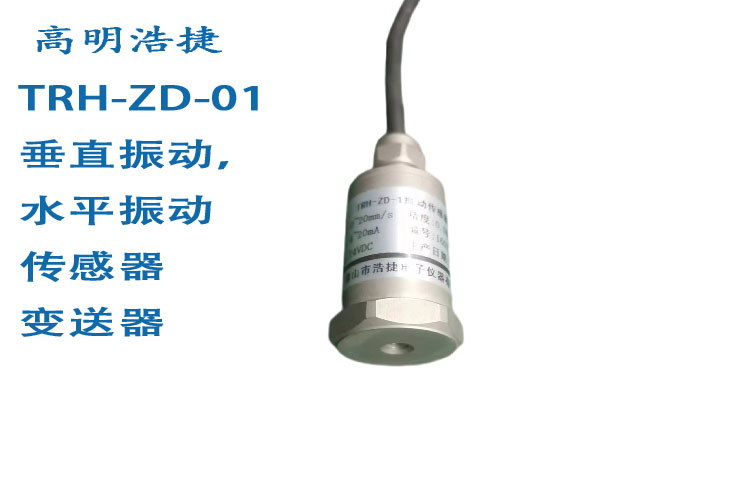

TRH-ZD - Vibration Sensor, Vibration Measurement Instrument, Vibration Sensor Transmitter

Power supply DC10-30V

Maximum power consumption current output 1.2W

Voltage output 1.2W

Protection level IP67

Frequency range (Hz) 10-1600 or 10-5000 (optional)

Vibration measurement direction single axis, perpendicular to the measurement surface direction

The temperature range that the transmitter contacts can withstand is -40-150 ℃ (default 85 ℃)

Vibration velocity measurement range (mm/s) 0-50

Surface temperature measurement range (℃) -40~+80

Vibration velocity measurement accuracy (mm/s) ± 1.5% FS (@ 1KHz, 10mm/s)

Output signal current output 4-20mA

Voltage output 0-5V/0-10V

Load capacity current output ≤ 600 Ω

Voltage output, output resistance ≤ 250 Ω

Real time detection cycle

Default wire length 1.5m
