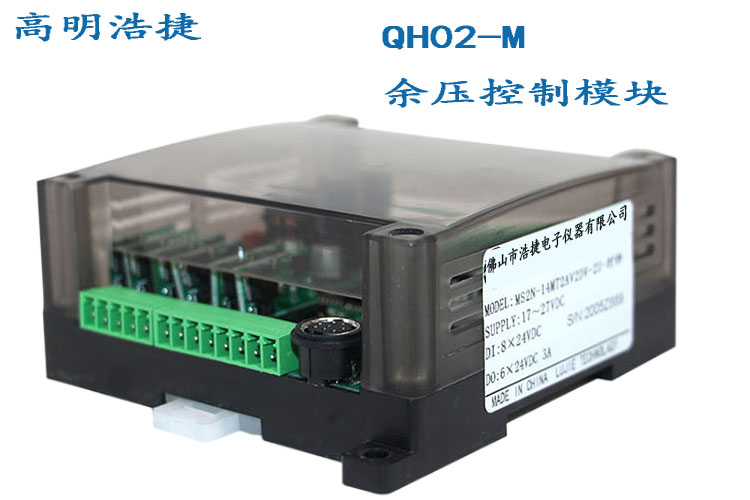

The QH02 module of the residual voltage controller includes a 24VDC 2.5A switching power supply (rail installation)

◆ Configure a 24VDC 2.5A switching power supply;

◆ Module programming control;

Power supply and hard wire collection of residual pressure detector signals under the current vertical shaft;

The bus controls the opening and closing of the current residual pressure/relief valve;

◆ Can be directly connected to the fire protection module;

◆ Independent system as the main control;

◆ Built in code for the host to identify a certain pressure relief valve;

◆ Increase communication signal amplifier;

◆ Incentive power supply 24VDC;

◆ Configure a 24VDC 2.5A switching power supply;

Weight: 5KG

Rail installation: Standard electrical rail 46 * 31mm

Module dimensions: 95 * 110 * 43 mm

Configure power size: 46 * 145 * 31 mm

The various parameters of this module have been written in, and users only need to wire according to the diagram.
