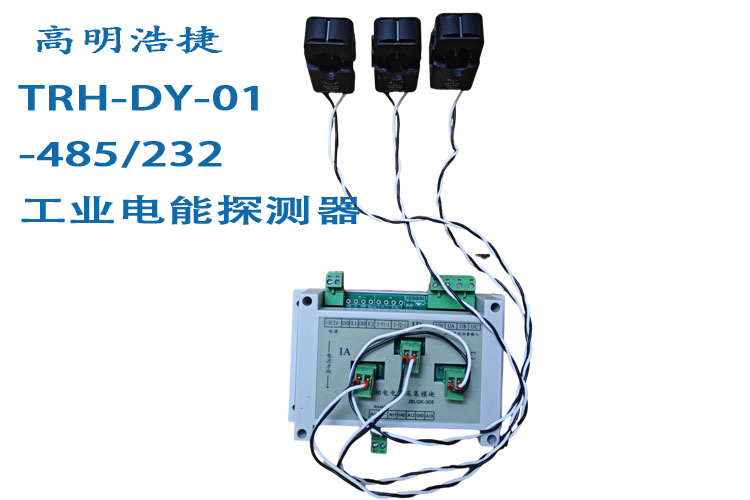

TRH-DY-485.232 Industrial Electric Energy Detector, Electric Energy Converter, Electric Energy Data Converter

强度：低
密度：低

TRH-DY-485.232 is a three-phase intelligent isolated electricity comprehensive acquisition instrument for comprehensive measurement of three-phase electricity. The measurement parameters include voltage, current, active power, reactive power, apparent power, power factor, cumulative electricity and other electrical parameters. It has high accuracy, good stability, and high communication speed. Fully isolated processing technology with strong anti-interference ability. The measurement of electrical parameters is remotely transmitted through RS485 digital interface output, and the product's Modbus communication protocol is fully compatible with various configuration software or Modbus (RTU) protocol in PLC devices.

Product parameters

Input and collect three-phase voltage

Phase voltage: 0-370V Line voltage: 0-640V

Collecting three-phase current: AC50A AC100A Working power supply: DC24V DC48V

Accuracy level: 0.5 Communication interface: 1 RS485 channel

Communication protocol: Modbus RTU
