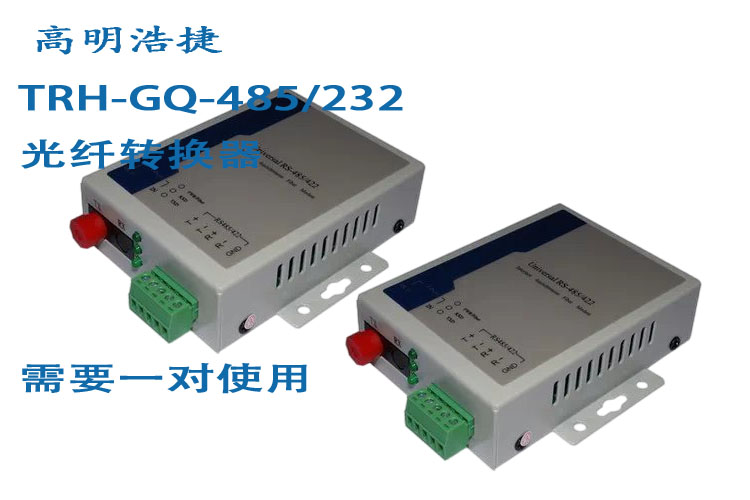

TRH-GQ-485/232 Industrial Single Mode Fiber Optic Converter (Paired, transmitter and receiver ends)

TRH-GQ-485/232 Industrial Single Mode Fiber Optic Converter (Paired, transmitter and receiver ends)

Product Features

▲ Can simultaneously support 1 RS-485 data channel

▲ Adaptive single-mode fiber

▲ Zero latency automatic forwarding

▲ Asynchronous transmission, point to multipoint application, RS-485 interface and fiber optic conversion

▲ Automatically detect serial port speed, distinguish and control data transmission direction

▲ Maximum communication rate>0-115-2Kbps

▲ 5V1ADC voltage input, external power supply

▲ Default FC interface

▲ Working wavelength: 1310nm/1550nm

▲ The interface provides 1500W surge protection and 15KV electrostatic protection

▲ Multi mode communication reaches 2 kilometers, single mode reaches 20-120 kilometers

▲ RS-485 supports 32 point polling (customizable 128 points)

▲ Application scope: Industrial automation control, access control, one card, parking lot and other systems

Communication indicators

The standard complies with EIA RS-485 standard

RS-485 signal T+, T-

Fiber optic signal IN, OUT

Asynchronous work mode, point-to-point

Direction control adopts data flow automatic control technology to automatically identify and control the direction of data transmission

Baud rate 0-115200Kbps, automatic detection of signal rate

Fiber optic wavelength 1310nm/1550nm

The transmission distance of the RS-485 port is 1000 meters

Optical port transmission distance: Single mode 20-120 kilometers

Interface protection: 600W surge protection, 1500V electrostatic protection

Load capacity RS-485 port supports 32 nodes

Electrical interface form 2-position terminal block

Environmental Indicators

Working temperature -25 ℃ to 70 ℃

Storage temperature -40 ℃ to 85 ℃

Relative humidity ranging from 5% to 95%

Appearance indicators

Dimensions: Length x Width x Height 110MM * 90MM * 25MM

Power indicators: shell, iron shell

Color: milky white

Weight 230g

Input power AC220V~5V1ADC wide power input

Power consumption 5W
