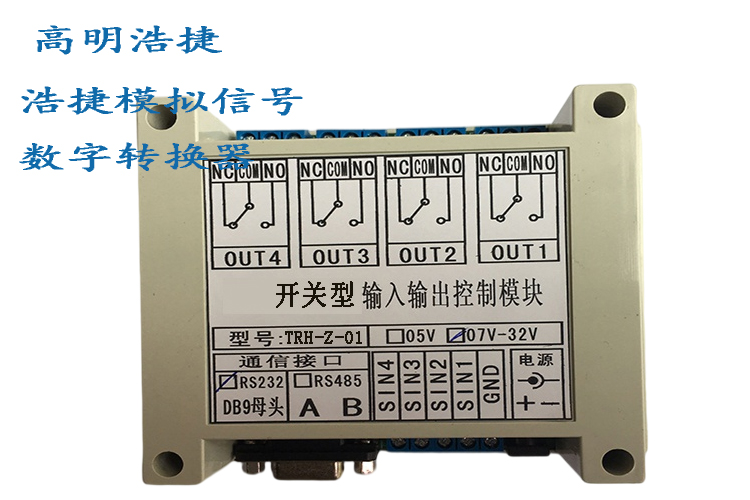

TRH-Z-02 switch signal conversion to digital signal transmission module, passive switch digital signal converter

TRH-Z-02 switch signal conversion to digital signal transmission module, passive switch digital signal converter

The product can be used for lighting control, automated production control, motor control, smart home appliance control, advertising control, and other applications, as well as for various switch inputs.

Technical Parameter

1. Dimensions: 115mm * 90mm * 40mm

2. Explosion proof performance: not explosion-proof

3. Waterproof performance: not waterproof

4. Power supply voltage: 12V (customizable 24V or 5V)

5. Power supply current: 1A

6. Contact capacity: AC220V10A, DC30V10A

7. Output indicator: Four output indicator lights

8. Input indicator: Four input indicator lights

9. Input type: Passive input

4、 Product default parameters

1. Address: 1

2. Communication interface: RS232

3. Supply voltage: DC12V

4. Target Address: 255

5. Trigger method: Single trigger (custom protocol)

6. Input method: Self popping switch

7. I O synchronization: asynchronous
