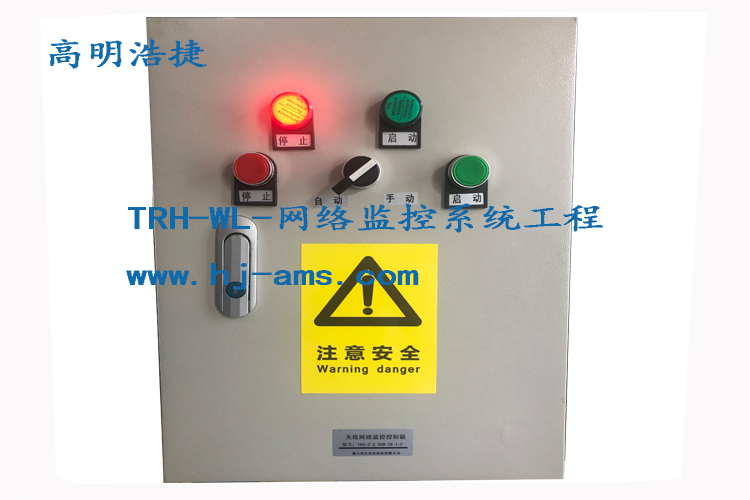

TRH-WL-38/22/24-S Wireless Network Pressure Control Cabinet, Wireless Network Pressure Alarm Cabinet, Wireless Network Hydraulic Pump Intelligent Control Cabinet

The main function of TTRH-WL-38/22/24-S wireless network pressure control cabinet, wireless network pressure control cabinet, and wireless network solenoid valve intelligent control cabinet is to monitor pressure through mobile phones, computer web pages, and simultaneously monitor various types of hydraulic pumps as a controller. When the pressure reaches the limit (set on mobile phone or computer website or locally), the hydraulic pump or solenoid valve will be activated to open and close.

Mainly applied in intelligent industry, intelligent buildings, and intelligent factories, such as wireless network monitoring of pipeline pressure, outdoor water pipe pressure monitoring, wireless network pressure limit protection cabinets, etc.

Specific functions:

1： Manually control multiple hydraulic pumps on site, with solenoid valves or hydraulic pumps linked to solenoid valves through pressure sensors.

2： Remote setting of water level limit devices can be achieved through mobile phones (unlimited number of devices equipped with our mobile app) and computer network platforms.

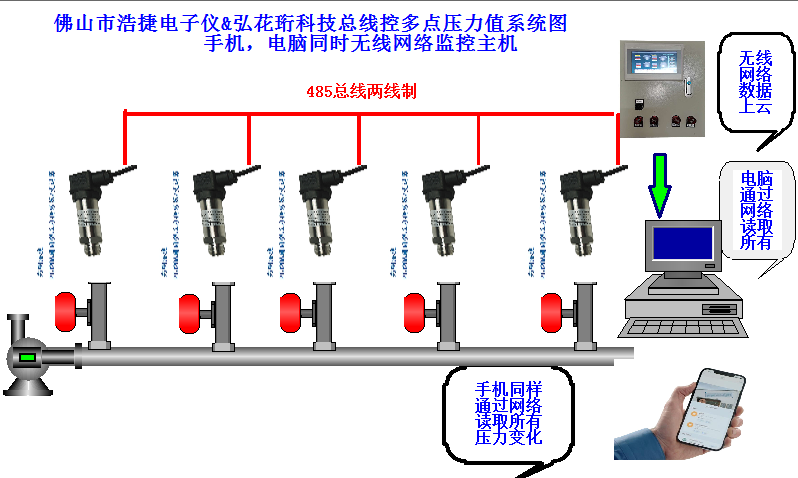

3： Wireless network monitoring of pressure changes, water pump status, and solenoid valve status.

Main parameters:

1： The power of the control motor/valve corresponding to a single control cabinet is: 90 W、120W、180W、250W、370W、550W、750W、1.1KW、1.5KW、2.2KW、3KW、4KW、5.5KW If it exceeds the scope, please inform our company that customization is possible

2： A single control cabinet corresponds to 1-10 control motors/valves. If the quantity exceeds the range, customization is possible

3： User selected:

1: Such as daily scheduled start stop, constant pressure, constant water level, and automatic control function of the control cabinet.

2: If constant and real-time feedback of water level changes is required. It is necessary to configure a liquid level sensor.

3: If wireless network monitoring is required for upper and lower limit alarm. It is necessary to configure a liquid level switch

Multiple locations and control cabinets can also be used to centralize mobile phones and wireless network monitoring systems. If you need to know more, please contact our colleagues or you can directly control our sample room remotely~
