5.5KW water pump fan control cabinet, rainproof water pump fan distribution cabinet, engineering plastic fan water pump control cabinet, intelligent control cabinet

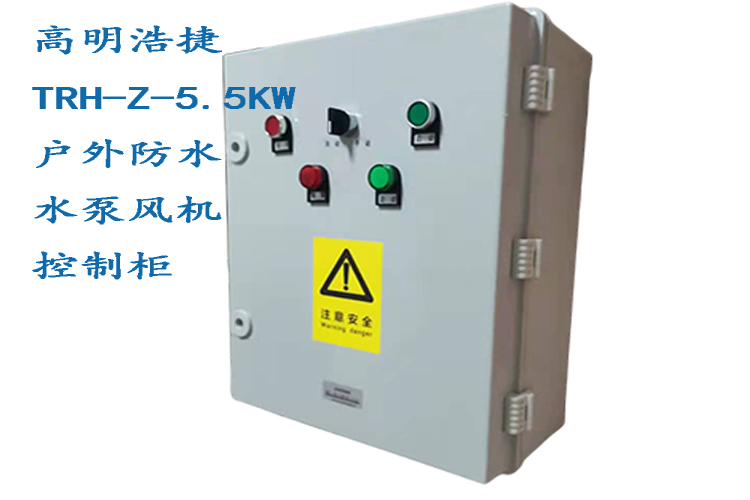

TRH-Z-5.5KW-38-1-Z-Q-N (rainproof) 5.5KW water pump fan control cabinet, rainproof water pump fan distribution cabinet, engineering plastic fan water pump control cabinet

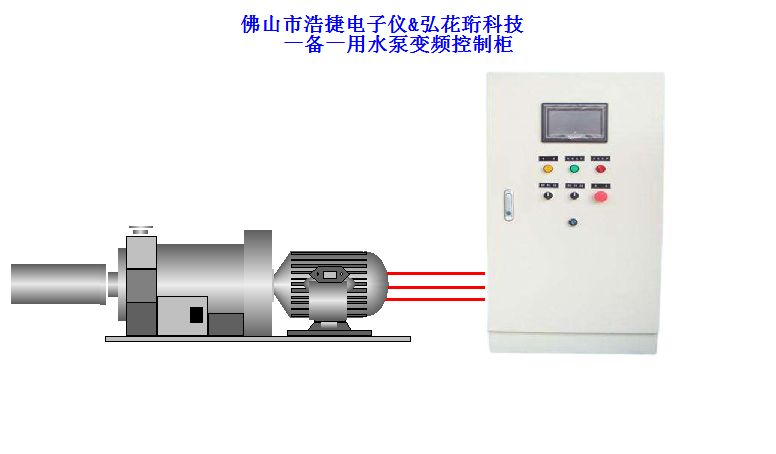

The main function is to power the fan or water pump, using branded components. The cabinet has waterproof and indoor installation types, which are durable and long-lasting. Through program control of motor constant voltage PID, multi-stage speed, upper and lower limit alarm and other logical relationships, single or multiple electromechanical facilities can be controlled, data recording can be achieved to achieve closed-loop control, and manual switching can be achieved.

Therefore, it is also known as adjustable speed control cabinet, motor power control cabinet, energy-saving control cabinet, touch screen motor control cabinet, energy-saving adjustable control cabinet

The main functional parameters are:

1: The water pump starts directly, stops at high water level, and starts at low water level.

2: The panel is equipped with a sound and light alarm, as well as a normal alarm for starting, and a manual automatic switch function button.

3: The corresponding control motor power is 5.5~7.5~18.5KW

4: The corresponding control motor can be selected from 220VAC and 380VAC

5: The standard size is 400 * 500 * 300mm

6: One to many customization options are available.

7: Using a human-machine interface for display, recording, and control (customizable).

8: Options, float switch, high and low limit control water pump, etc..

(External DDC, mobile app, computer network wireless monitoring are also available for customization)
