Gaoming Haojie TRH-Z Intelligent Valve Control Cabinet, Program Valve Control Cabinet, Intelligent Valve Program Control Cabinet

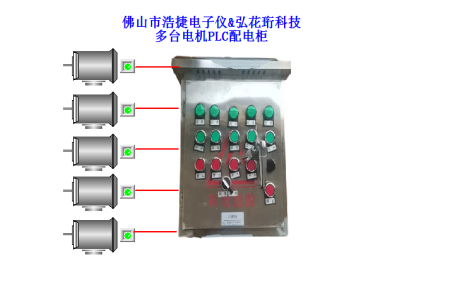

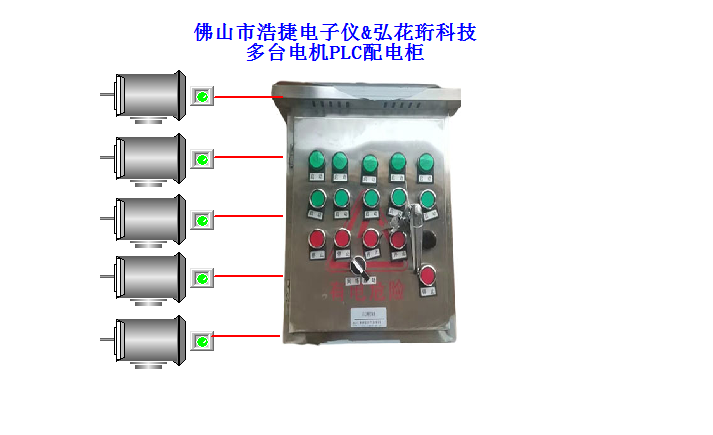

The main function of the PLC control cabinet is to program control equipment such as motors, intelligent valves, and fans. Run various logical programs and collect data from a centralized cabinet by issuing commands.

For example, monitoring multiple valves, water pumps, fans, and their logical relationships simultaneously.

For example, valves require on-site angle control and also feedback to the user's host for local and remote monitoring. Wait for program monitoring.

For example, single or multiple solenoid valves are used for program logic control.

For example, the linkage of various types of devices.

Specific functions:

1： The monitoring targets include:

Smart valves: Single or multiple smart valves that require precision to the angle.

Electromagnetic valve: single or multiple electromagnetic valves.

In order to cope with various environmental conditions, the detector has various sensors depending on the working conditions.

2： Control equipment: Electromagnetic valves, intelligent regulating valves, and other devices. The same intelligent control cabinet can control multiple devices simultaneously.

In order to meet user needs, the main control components such as PLC (brand can be specified by the user), touch screen, etc. may be selected according to the current situation.

3： Equipment parameters: 24VDC, 220VDC, 380VAC

Power range: 90 W、120W、180W、250W、370W、550W、750W、1.1KW、1.5KW、2.2KW、3KW、4KW、5.5KW、7.5KW、11KW、15KW、18.5KW、22KW、30KW、37KW、45KW、55KW、75KW。

4： The control cabinet displays or records instruments such as display control instruments, human-machine interfaces, touch screens, etc. for monitoring and recording program control.

5： Purpose of control cabinet:

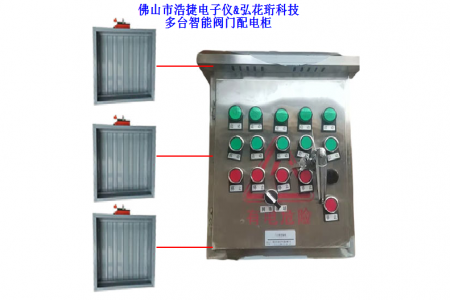

1: Centralize program monitoring of all intelligent valves and logic monitoring of solenoid valves.

2: On site display, recording, and simple sound and light alarm.

3: Energy saving, mechanical and electrical equipment failure.

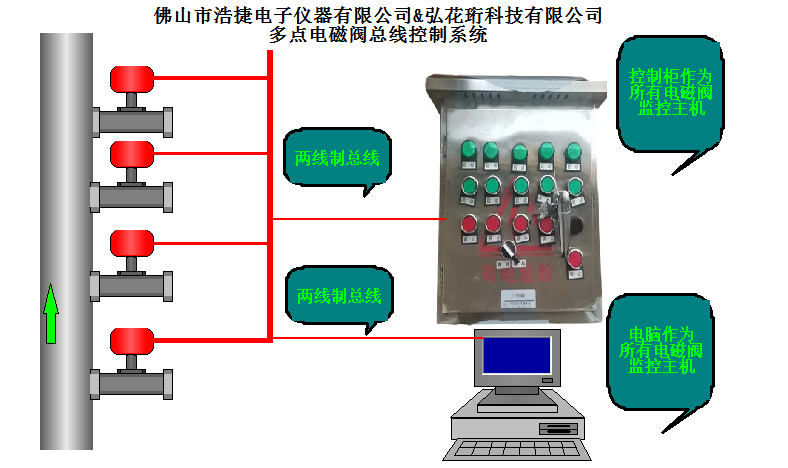

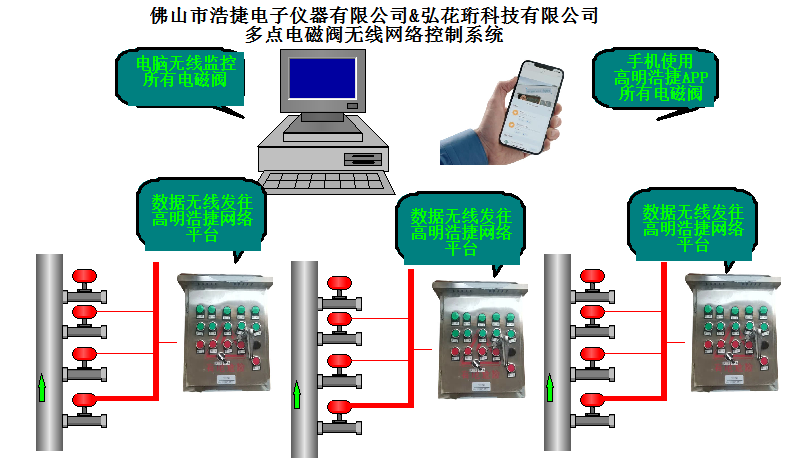

6： Bus host (computer program, host control cabinet) monitoring and wireless network monitoring can also be carried out between multiple control cabinets (free delivery of mobile APP and computer webpage).

7： Maintenance and modification can also be carried out on the original system, and our company provides professional programmers to carry out the original system modification.

8： If you need to know, our company uses detailed usage videos, please contact our personnel.
